Standard Accessories:
1.Ratchet handle x1pc
2.Adapter x1 pc
3.Guide key x2 pcs
4.Screw M6x12L x2 pcs
5.Vise locked block x4 pcs
Features:
Ø The vise is made by precision processing and grinding processes, it's suitable for vertical / horizontal machine centers to precision processing.
Ø Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC50°), ensure high precision and high wear resistance, high tensile strength.
Ø Jaw hardened heat (HRC55 °).
Ø Angle lock semi-sphere can be generated under the power of the lock, removes the workpiece to be lifted.
Ø Hydraulic design(patent design) with rapid pressurization and high clamping force of the unique characteristics of the pressuring mechanism (highest up to 5500 kgf).

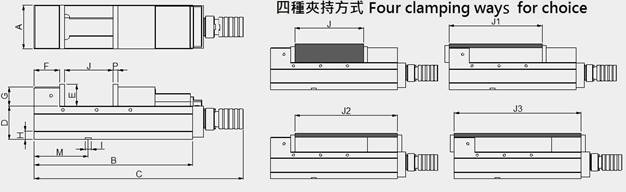

Ø The vise has four clamping ways for client to choice.
Ø The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged inside the interior and extend its lifetime.
Ø These vises have fixed specifications. Many vises will be used together at the same time.
